KASON

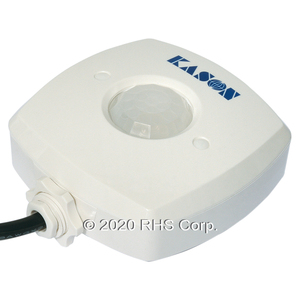

1910A SERIES MOTION SENSOR
LOW BAY
| LIST PRICE | $ 368.48 | ||
| YOUR PRICE | $ 368.48 | ADD TO CART | |
MFR Part #: 11901000005
RHS Part #: 40-511
RHS Part #: 40-511
| IN STOCK: | CA | YES |
| CO | YES |
PRODUCT INFORMATION
RHS NOTES
VOLTAGE: 120/277 VAC @ 60HZ
PASSIVE INFRARED SENSOR DETECTS MOTION AND TURNS LIGHTS ON AT TEMPERATURES TO BELOW FREEZING. USES DIP SWITCHES TO SET TIME DELAY AND PIR SENSITIVITY.
LOW BAY SENSOR: HIGH DENSITY OPTIC LENS SET COVERS A 24 FT. (7.3M) DIAMETER WITH CEILING HEIGHT UP TO 20 FT. (6.1M). HIGH BAY SENSOR: SAME AS ABOVE EXCEPT WITH CEILING HEIGHT FROM 20 FT. (6.1M) TO 40 FT. (12.2M).
LOAD:120 VAC WITH 0-800 W BALLAST; 277 VAC WITH 0-1200W BALLAST. TIME ON DELAY:MAY BE SET FROM 15 SECONDS TO 30 MINUTES.
TEMPERATURE RATINGS:-40O F (-40O C) MINIMUM; 131O F (55O C) MAXIMUM.
ELECTRICAL CONNECTION:1/2" NPT CONDUIT CONNECTION, 13-1/2" (342.9MM) 18 AWG WIRE.
SAFETY STANDARDS:IP65 UL-LISTED US AND CANADA FOR WET LOCATION; NSF LISTED .
WORKS WITH MOST LIGHT FIXTURES USED IN REFRIGERATION AND FREEZER APPLICATIONS
MATERIAL
Polycarbonate
MOUNTING
Horizontal or vertical for use with all Kason light fixtures (Mounting kit included).
TEMPERATURE RATINGS
-20°F (-28.9°C) minimum; 160°F (60°C) maximum.
PROP 65 Warning
